XML-DA Server Side Gateway

The XML-DA Server Side Gateway is an XML DA service that enables XML-DA clients to access OPC DA V2 servers. Through the gateway OPC DA servers can be accessed from remote XML DA  clients.   read more...
For evaluation downloads, quotes, purchase orders or credit card purchases, add the item to the shopping cart and go thru checkout.
Evaluation License
SKU:XDAGWSS-EV
The Evaluation License grants the non-exclusive right to use the software for evaluation and testing purposes only. The software is time restricted to run for only 30 minutes at a time. Please read the license agreement.
Price: $0.00
Single Instance License with Support
SKU:XDAGWSS-1S
Binary License for a single gateway instance. A 90 days support subscription is included. The subscription includes updates and help with the configuration and XML DA server communication issues.
Price: $645.00
Single Instance License without support
SKU:XDAGWSS-1
Binary License for a single gateway instance. No support is included. Choose this license if the application was tested previously or if you are sure that you are not going to need any help and support services.
Price: $345.00
10-Pack
SKU:XDAGWSS-10
Package with 10 Binary licenses, each for a single gateway instance. No support is included. If you expect any support services then purchase also a Single Instance with Support license.
Price: $1,745.00
Subscription for XDAGWSS-1S licenses
SKU:XDAGWSS-SV1S
The Subscription Renewal extends the subscription of the underlying license for a 12 month period from the subscription expiration date (not the purchase date). Please read the license agreement.
Price: $295.00
Subscription for XDAGWSS-1 licenses
SKU:XDAGWSS-SV1
The Subscription Renewal extends the subscription of the underlying license for a 12 month period from the subscription expiration date (not the purchase date). Please read the license agreement.
Price: $395.00
Subscription for XDAGWSS-10 license pack
SKU:XDAGWSS-SV10
The Subscription Renewal extends the subscription of the underlying license for a 12 month period from the subscription expiration date (not the purchase date). Please read the license agreement.
Price: $395.00

XML-DA Server Side Gateway      Product DescriptionReference ManualVersion Log

OPC XML DA Converter

OPC XML DA converter service that enables XML DA client to access OPC DA DCOM servers

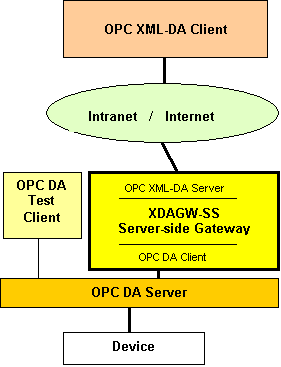

The XML-DA Client to OPC-DA Server Gateway (XDAGW-SS) enables XML DA client applications to access OPC DA servers.
The XDAGW-SS Gateway offers a way to allow existing XML DA client applications access to the wide base of installed OPC DA servers.
The gateway is provided in version for IIS web services  and one for WCF.
WCF offers more communications options but is useful only when both sides, client and server, are WCF based.

XDAGW-SS is compliance tested for XML-DA V1.0.1 and OPC-DA V2.05 and 3.0. If connected to an OPC-DA V3 server the OPC DA V3 features such as WriteVQT() are used, otherwise the server is accessed OPC-DA V2.05 compliant.



Configuration and Diagnostic Utility
The XDAGW-SS gateway configuration settings are defined in the AppSettings section of the web.config file.
The configuration utility displays the settings and changes can be made interactively instead of modifying the web.config file with a text editor.
The diagnostic features test the access to the OPC DA server and the XML DA gateway web service.
The .NET3 configuration is also in the web.config file and is modified with the WCF configuration utility.



Security
Web services don't provide a high level of security. Using HTTPS is the only option.
The gateway implements effective security measures. It can be configured to restrict the server access to an item subset. E.g. make some items read-only or allow only a subset of the items to be accessed.

The XDAGW-SS gateway is provided in a version for WCF that can be configured for secure communication.
In communication with WCF based XML DA servers, any WCF communication bindings can be used, including X.509 certificates



System Requirements

  • Windows 7, 8.x,10, Windows Server 2008,2012,2016
  • .NET 4.x
  • IIS with ASP.NET or WCF
