This test client application is part of the Advosol OPCAE.NET client development component product.
It is provided in the uaPLUS distribution.

With the UA Option for OPCAE.NET client applications can access UA server through the same API as classic OPC AE servers.
The test client therefore can be used to test the access of OPC AE and OPC UA servers.
The server type is determined from the server ID.

• For OPC AE servers the server ID is a DCOM ProgID, e.g. Advosol.SimDAServer.1
• For OPC UA servers the server ID is ua:url, e.g. ua:http://localhost:80/Advosol/uaPLUS

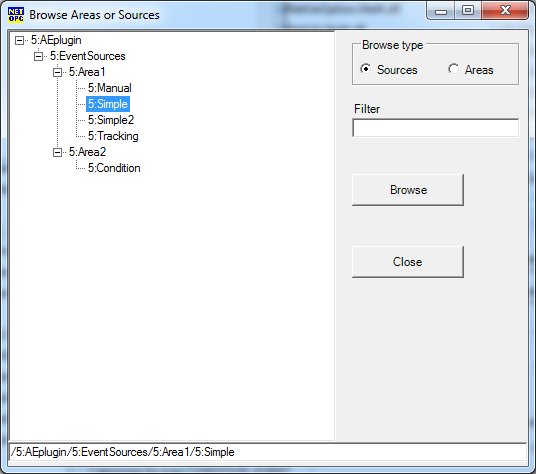

Browsing the server for areas and sources

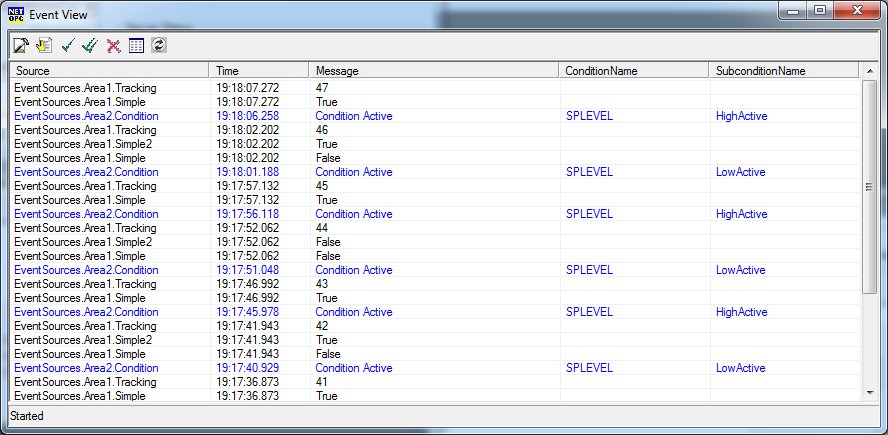

Event view form showing received events

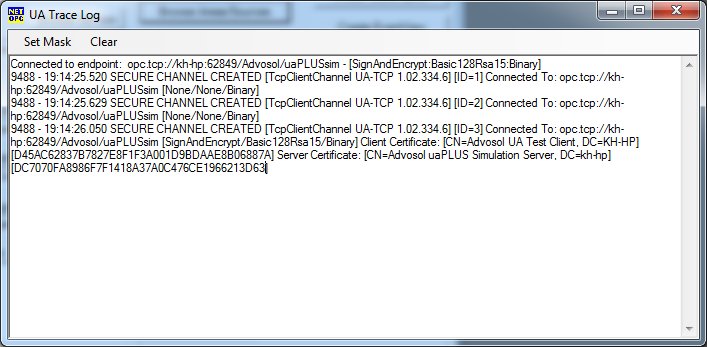

Detailed error reporting is not possible through the OPC AE compliant API. For UA error reporting the client application can define an error callback handler. The test client does this and displays error and trace information in a window. The Window is automatically opened on the first message and stays open. The Window can be closed when the messages are not of interest.
